Game Tab

The Game tab is where you play and interact with Grid Universe levels. It provides real-time visual feedback, player status, and multiple control options.

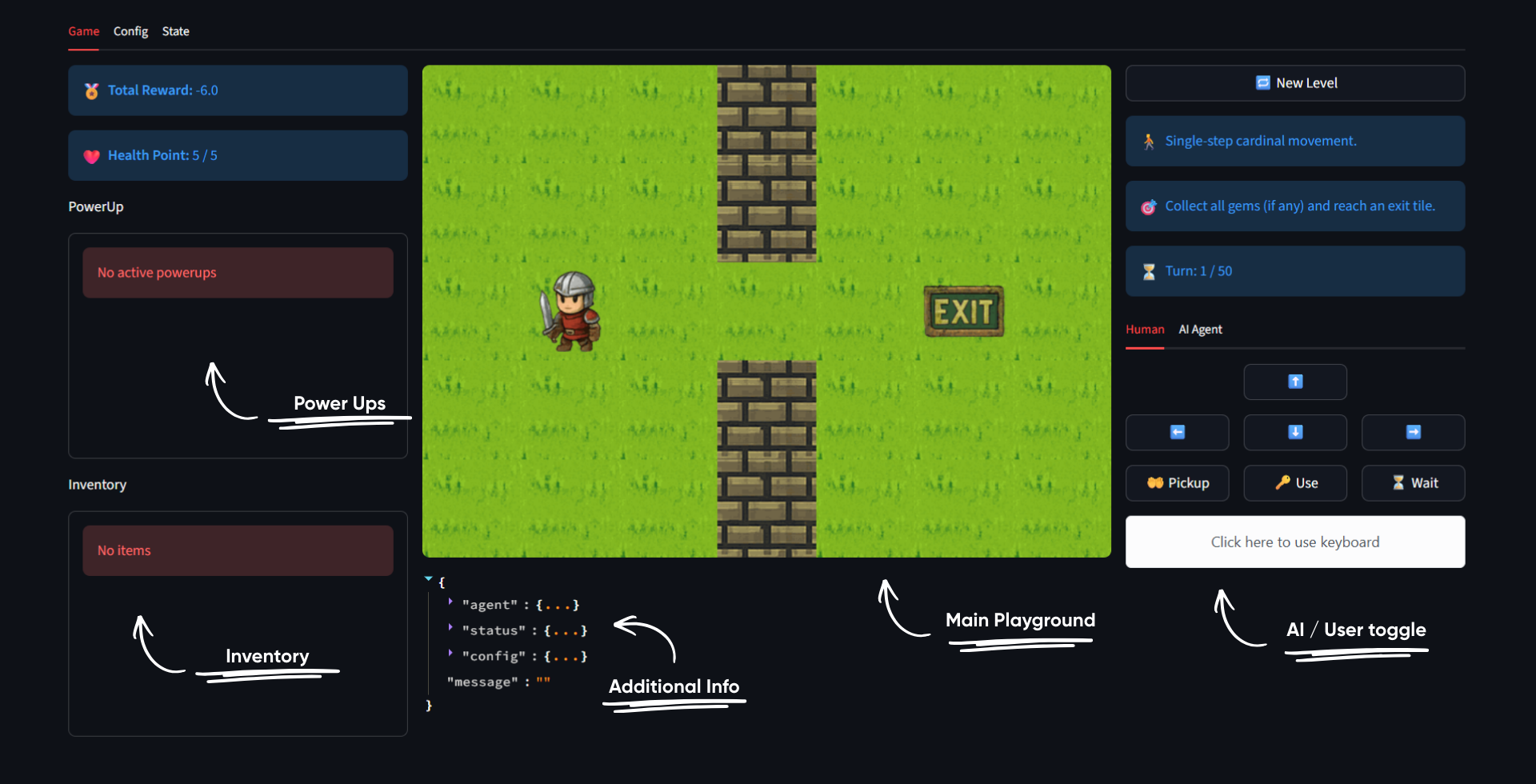

Interface Layout

The Game tab provide information on the current representation of an ongoing game in the game.

Components	Description
Left Column	Overall Information of the game
Middle Column	Game View using Observation Class
Right Column	Agent Control Panel

Left Column - Player Status

Displays your current game status:

Indicator	Description
Total Reward	Your accumulated score/reward points
Health Points	Current HP with damage notifications
PowerUp Status	Active temporary effects
Inventory	Items you've collected
PowerUp	Active Powerups
Inventory	Collected Items in Inventory

Middle Column - Game View

The central area shows:

• Game Visualization - Real-time rendering of the grid world
• Observation Info - JSON display of the current game state data

Right Column - Game Info

Provides context about your current level:

Section	Description
New Level	Button to generate a new level variant
Level Rules	Movement type (e.g., cardinal directions)
Objective	What you need to do to win
Turn Counter	Remaining turns (if turn limit exists)
Agent Control	Switch between Button, Keyboard & Code control

AI Agent Mode

The AI Agent tab allows you to test automated agents:

Loading an Agent

1. Click the Settings button to open the agent dialog
2. Paste your agent code or use the provided template
3. Click Load to compile and initialize the agent

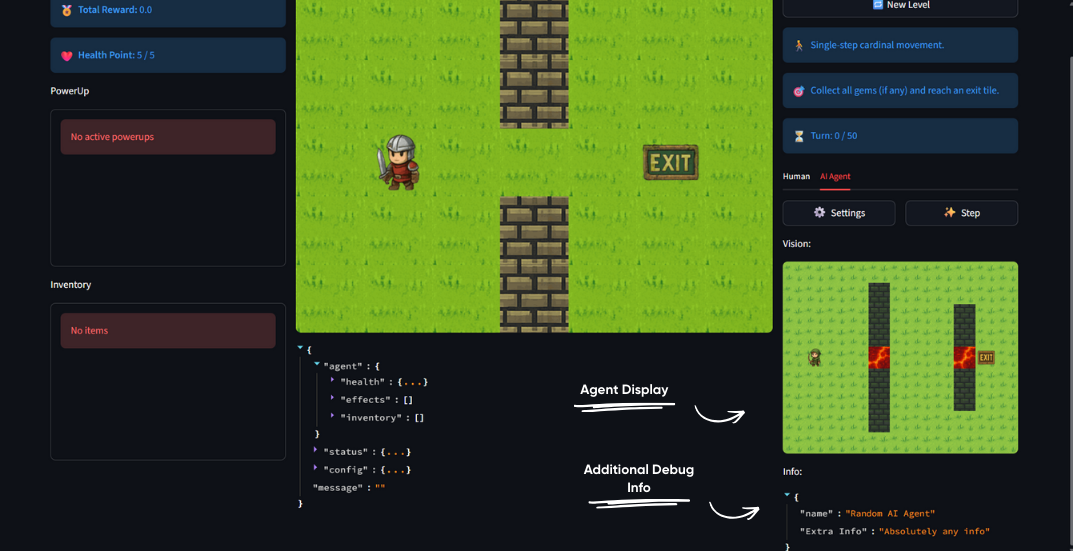

Running the Agent

• Click Step to execute one action from your AI agent
• The Vision display shows what the agent "sees" using the parse function
• The Info display shows debug information from your agent using the info function.
